The journey to the finish line

What is AWS DeepRacer?

It is a miniature racing car that is 1/18th of a real car in term of scale*1. Furthermore, it comes with different type of cameras and sensors that enable autonomous driving. Following are the available sensors (image courtesy of Amazon Web Service):

Image Name Description
f:id:tanhungp:20200702185019p:plain Single camera Single-lens 120-degree field of view camera capturing at 15fps. The images are converted into greyscale before being fed to the neural network.
f:id:tanhungp:20200702185102p:plain Stereo camera Composed of two single-lens cameras, stereo camera can generate depth information of the objects in front of the agent and thus be used to detect and avoid obstacles on the track. The cameras capture images with the same resolution and frequency. Images from both cameras are converted into grey scale, stacked and then fed into the neural network.
f:id:tanhungp:20200702185117p:plain Lidar sensor LIDAR is a light detection and ranging sensor. It scans its environment and provides inputs to the model to determine when to overtake another vehicle and beat it to the finish line. It provides continuous visibility of its surroundings and can see in all directions and always know its distances from objects or other vehicles on the track.

The sensors sample rate is 15 Hz (15 samples per second).

Beside the sensors, the car itself can run up to 4 m/s with maximum steering angle of 30 degrees.

What is reinforcement learning?

Reinforcement learning is a type of machine learning that is capable of planning and decision making. It is one of the big field of research in AI, if you want to know more about it from the ground up, I recommend the book called Reinforcement Learning: An Introduction*2. Below is a diagram showing a general reinforcement learning schema:

f:id:tanhungp:20200702185636p:plain

Our agent here is the DeepRacer car. Environment is the actual racing track. Our agent percepts or sees the environment through its sensors, this perception becomes the state of the agent. Then it will perform actions based on its internal set of rules (or model).

The motivation for the model to try to perform better is based on the reward. The model can be a deep learning neural network, trying to approximate the best policy. A policy is a function that map the state and action with highest possible rewards. For example, the rewards can simply be finishing the track, then the policy (agent/model) that manage to finish the track will be awarded higher rewards.

For our current problem, the actions are discrete and separated into 2 groups: steering angle and speed. Steering angle range is 1 - 30 degrees with granularity options 3, 5 or 7. Speed range is 0.1 - 4 ms with granularity options 1, 2, 3. Number of actions is based on granularity only. For example with steering granularity of 3 and speed granularity of 2 will results in total of 3 * 2 = 6 actions.

To actually approximate the best policy, AWS uses PPO (Proximal Policy Optimization)*3*4 method to train the DeepRacer. The underlying neural network is a simple n-layer convolution neural network (CNN). n here can be 3 or 5 in our case.

There are a few parameters we received during training that can be used to calculate the reward functions:

Environment Car Progress
closest_waypoints, closest_objects, distance_from center, track_length, track_width, waypoints is_crashed, is_left_of_center, is_offtrack, is_reversed, heading, speed, steering_angle, x, y steps, progress

The social distancing F1 race

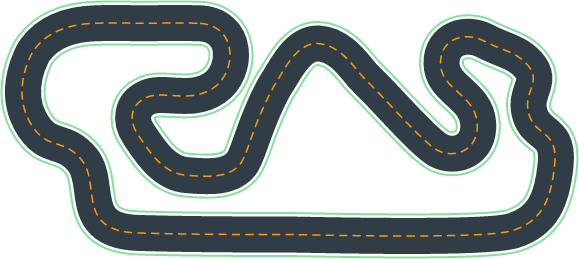

To the future generation that is not familiar with the word ‘social distancing', this race happened amidst the CoVid-19 virus outbreak. To prevent its spread, we need to social distancing ourselves. This race is done entirely online in the virtual circuit. This is our race track, called Circuit de Barcelona-Catalunya, which is the reproduction of the official F1 Spanish Grand Prix track:

f:id:tanhungp:20200702190416p:plain

We will refer to this track as the F1 track.

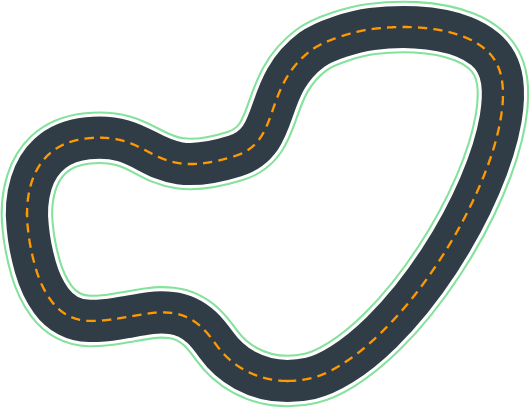

We also do a time-trial focus on this track, called The 2019 DeepRacer Championship Cup:

f:id:tanhungp:20200702190655p:plain

We will refer to this track as the 2019 track.

So a time-trial is one of the 3 types of race available:

Race Recommended sensors Description
Time trial Single camera No obstacle or other cars, just you and the road. Every time the car is out of the track, you get 5 seconds penalty time
Object avoidance Stereo camera There are obstacles littered around the track. When you hit the obstacle or out of the track, you get 5 seconds penalty time.
Head-to-head Lidar, stereo camera The bread and butter of racing. You face off against other cars. If you hit them you get 5 seconds penalty, same goes for other cars.

The ‘rewarding’ journey to the finish line

We had options to customize our agent itself or our reward function and we found out that they are equally important.

The first trial

Firstly we just wanted to make a functional agent to get a feel of how things work. Our first agent was a single camera, 3 layer CNN, max speed 1 m/s granularity 3, max steering angle granularity 3. Our reward function was focusing on stay in the track and avoid steering too much, hence the parameters we used in the function were: all_wheels_on_track, track_width, distance_from_center, steering_angle. And voila! It worked albeit the car was very slow.

The trial and errors

We then tried to play around with the reward function, testing from negative rewards to super simple rewards like just speed and progress.

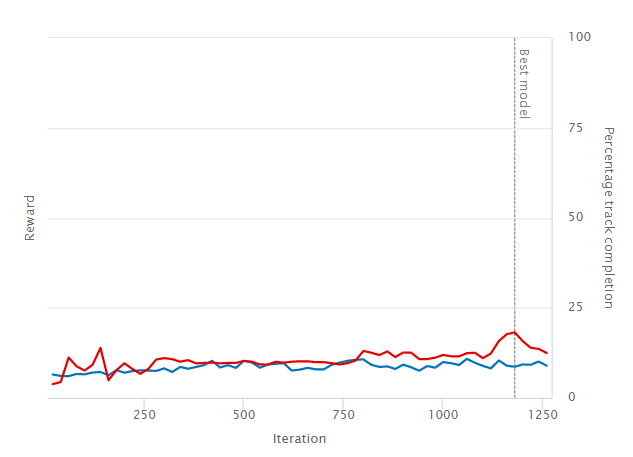

Some trials worked and some did not. Some never learned:

f:id:tanhungp:20200702191939p:plain f:id:tanhungp:20200702191953p:plain

We started to diverge between the F1 track and the 2019 track. We wanted to try all 3 types of race for the F1 while focus on time trial for the 2019.

The overall trend for both tracks was adding speed multiplicative rewards. But for the F1 track, we actually tried to simplified both the rewards and the agent action space while for the 2019 track we tried to overfit the agent with the optimal path.*5

Tips: you can pre-train a model on easier tracks for it to learn the basic, then clone that model to train on harder tracks.

The realization

Up til now, we had not touch the agent much beside trying to increase its speed and increase the granularity to maximum as we thought it would help the agent to be more flexible and better. However, with great power (number of actions) comes great responsibility. Responsibility, our model had none. It was drunk driving.

The biggest jump in the leader boards for the F1 track was went we crank the speed to maximum and reduce the action space as well as the maximum steering angle. This is our best model action space:

Action number Steering Speed
0 -15 degrees 1.33m/s
1 -15 degrees 2.67m/s
2 -15 degrees 4m/s
3 0 degrees 1.33m/s
4 0 degrees 2.67m/s
5 0 degrees 4m/s
6 15 degrees 1.33m/s
7 15 degrees 2.67m/s
8 15 degrees 4m/s

Beside the task specific reward (try to avoid obstacles and other cars), our reward function utilized a speed multiplicative coefficient. So whatever our reward was, it would be multiplied by the current speed. We also gave the agent a big fat reward once it reached the finish line.

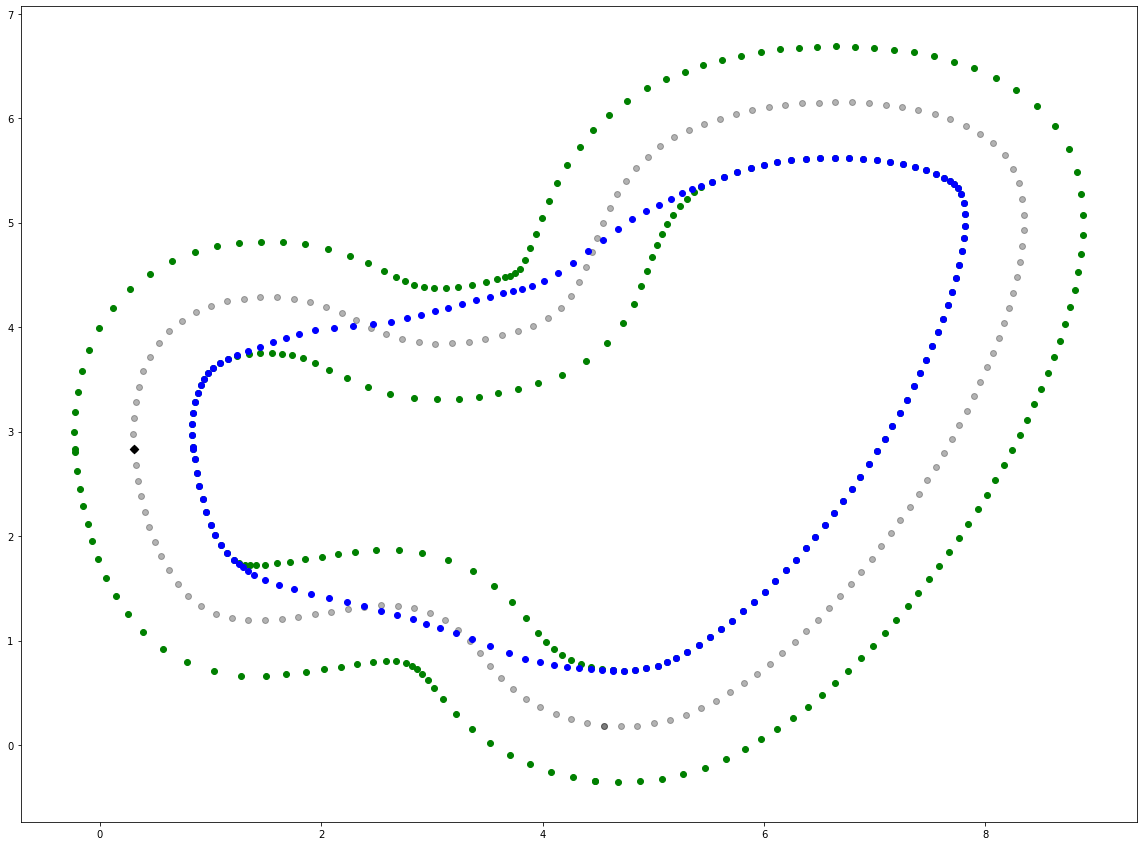

The 2019 track also saw many increments. We obtained the optimum path*6*7 by assigning each waypoint a neuron and the sum of distance between each neuron as the loss function to let them converge (minimize the loss). Below was the optimum path for this track after 20K epochs, which was also the shortest path ever possible(the blue line). Now the agent only needed to learn to drive closer and closer to the optimum while remain fast. There were some other algorithms that calculated optimum racing line differently, but here we used the shortest path as our optimum. Below was our calculated optimum path (blue dots) for the 2019 track:

f:id:tanhungp:20200702192940p:plain

The finish line

Here we are, at the end of the road. The final result of the F1 race was this:

f:id:tanhungp:20200702193049p:plain

Not too shabby for our first time entering AWS DeepRacer. We are even in top 9 for object avoidance, and hence here is the video for that:


Best obstacle avoidance F1

Our 2019 track also sees promising result, we are 67/341 for the time trial, here is the video:


Optimal path 2019 track

Our lesson

Training an artificial intelligent agent is not much different from training a baby, you need to be careful and watchful. Give it rewards correctly or else it will have a wrong motivation. Designing the agent and its action space is also equally important!

Authors: Pham Tan Hung (F1 race), Yun Yi Ke (2019 race)
